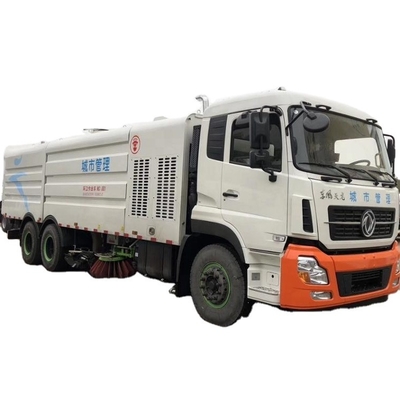

Dongfeng 6X4 22m3 Vacuum Road Washer and Sweeper Truck
Brief introduction of Dongfeng 6X4 22m3 Vacuum Road Washer and Sweeper Truck
The sweeping system is composed of vice engine, suction fan, clear water tank, garbage container, rear suction disc, left and right vertical sweepers, dust suppression and sweeping system, hydraulic system, electronic control system and auxiliary frame.
The washing system is composed of sprinker, spray, and flash nozzle, water tank, water pump, water cannon.
1. Euro 5 engine, 245hp, 6700ml
2. 170hp vice engine
3. 13m3 clear water tank:anti-corrosion and dust treatment
4. 9m3 garbage container: double inner tank made of stainless steel, with filter screen inside
5. Vertical sweeper: equipped with water spray device, the front sweepers have automatic avoiding function.
6. Max sweeping width:3.5m
7. Stainless steel water tank and garbage container
8. Self-cleaning function with garbage container
1. General Specification
Dimension | 10600×2500×3350 mm |
Gross weight | 25000kg |
Rated load weight | 7145kg |
Curb weight | 17660kg |
Max speed | 90km/h |
Crew seat | 3 |
Wheelbase | 5350+1350mm |
2. Chassis Specification
Chassis brand | Dongfeng |
Transmission | Manual |
Fuel | Diesel |
Tire number | 10 |
Tire specification | 11.00R20 |
Engine | ISD245 50 |
Engine power | 180kw (245hp) |
Displacement | 6700ml |
Emission standard | Euro 5 |
3. Sweeping Specification
Sweeping speed | 3-25Km/h |
Sweeping efficiency | ≥98% |
Maximum suction size | 120mm |
Max sweeping width | 3.5m |
Max sweeping capacity | 80000m2/h |
Max angle for discharging the garbage container | ≥45° |
Garbage container volume | 9 m³ |
Garbage container material | Stainless steel (thickness: 4mm) |
Clear water tank volume | 12 m³ |
Hydraulic oil tank volume | 60L |
Vice engine power | 170hp |
Others | Garbage self-cleaning fuction |
4.Washing specification
Water tank volume | 13 m³ |
Material | Stainless steel (thickness: 4mm) |
Water pump flow | 153L/m |
High pressure hose reel | 20m |
Water nozzle position | front, rear, side and middle |
Optional device | Work platform, snow shovel |
