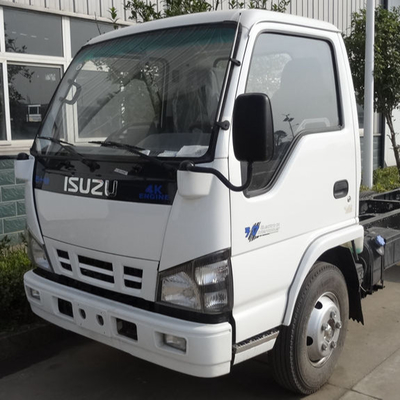

ISU-ZU 4X2 5.5CBM Vacuum Road Sweeper Truck
Brief introduction of ISU-ZU 5.5m³ Sweeper Truck
The sweeping system is composed of vice engine, suction fan, clear water tank, garbage container, rear suction disc, left and right vertical sweepers, dust suppression and sweeping system, hydraulic system, electronic control system and auxiliary frame.
1. Euro 5 engine,96kw, 2999ml
2. 57kw vice engine
3. 1.5m3 clear water tank:anti-corrosion and dust treatment
4. 4m3 garbage container: double inner tank made of stainless steel, with filter screen inside
5. Vertical sweeper: equipped with water spray device, the front sweepers have automatic avoiding function.
6. Max sweeping width:2.8`m
1. General Specification
Dimension | 6200×2010×2530mm |
Gross weight | 7300kg |
Rated load weight | 1970kg |
Curb weight | 5200kg |
Max speed | 110km/h |
Crew seat | 2 |
Wheelbase | 3360mm |
2. Chassis Specification
Chassis brand | Isuzu |
Transmission | Manual |
Fuel | Diesel |
Tire number | 6 |
Tire specification | 7.00-R16 |
Engine | 4KH1CN5HS |
Engine power | 96kw (130hp) |
Displacement | 2999ml |
Emission standard | Euro 5 |
3. Sweeping Specification
Sweeping speed | 3-20Km/h |
Sweeping efficiency | ≥95% |
Maximum suction size | 1100mm |
Max sweeping width | 2.8m |
Max sweeping capacity | 40000m2/h |
Max angle for discharging the garbage container | ≥45° |
Garbage container volume | 4 m³ |
Clear water tank volume | 1.5 m³ |
Hydraulic oil tank volume | 60L |
Vice engine power | 57kw |
Optional device | Front spray, rear sprinkler, self-cleaning coil, operation monitoring system, auxiliary straw device, snow shovel |
